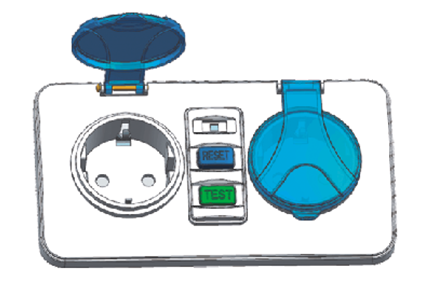

BKZ0230SPWG
TWIN RCD Plastic Socket
Dimensional surface: 147x82mm max |
Product introduction：
型号Model: BKZ0230SPWG 参数Specification: 额定电压Rated Voltage: 250VAC 额定电流Rated Current: 16A 工作频率Frequency: 50Hz 剩余动作电流Trip Current: 30mA 脱扣速度Tripping speed: 40mS max 浪涌电压Voltage Surge: 4KV (100KHz Ring Wave) 寿命Endurance: 2000 Cycles min
标准Approval & Standard:EN61008 & VDE0620 CE 防护等级IP Rating : IP4X 典型应用Application: Equipment , Household appliances , etc. |
|||||
