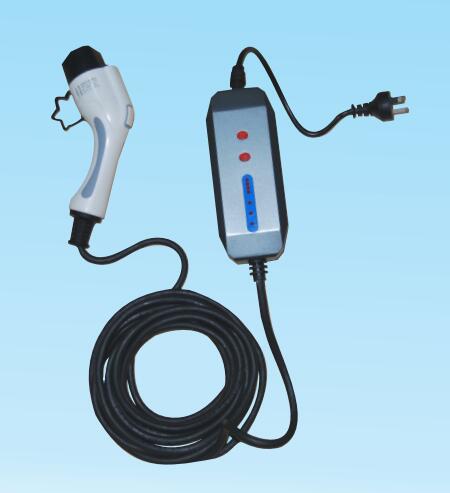

16A / 220V Single-phase AC Vehicle Charging Controller
16A / 220V Single-phase AC Vehicle Charging Controller
Applicable from 80V to 260V BKZ Baokezhen focus on designing and producing 220V 16A/32A portable vehicle charging controller, 380V 32A fixed charging pile for worldwide customers! |
Product introduction：
Technical performance requirements Working ambient temperature: - 20 / 50 ℃ Relative humidity: 5-95% Rated working output voltage: 100-240VAC±10% Rated working output current: 16A Maximum output power: 3500W Operating frequency: 50Hz/60Hz Leakage protection current: DC 6mA, AC 30mA Leakage tripping time: 50ms
|
|||
