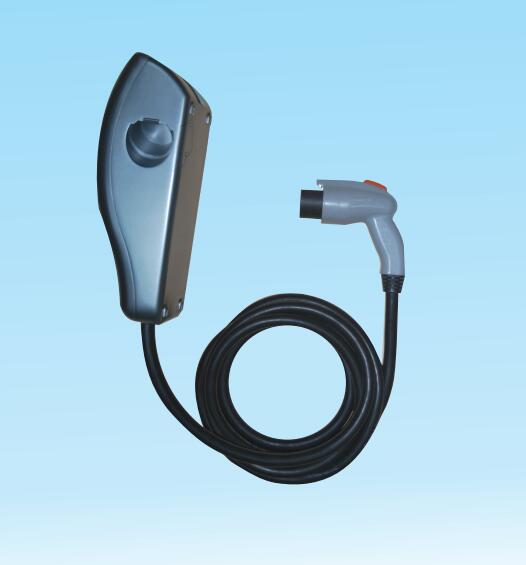

32A / 380V  Three-phase AC Vehicle Charging Pile

Applicable from 200V to 415V

Main parameters and functions of single-phase AC vehicle charging controller

1. Charging mode and connection mode

Mode 3, connection mode: C

2. Charging leakage protection is Type B

Detect and protect sine wave, DC pulse wave and smooth DC

Automatic safety detection of equipment

After the equipment is powered on, the system automatically detects whether the equipment is normal.
The detection process is as follows:
Whether L / N is connected reversely

Whether the output have high voltage

Whether PE grounding is good

Whether the leakage protection is normal

Basic protection functions of equipment:
