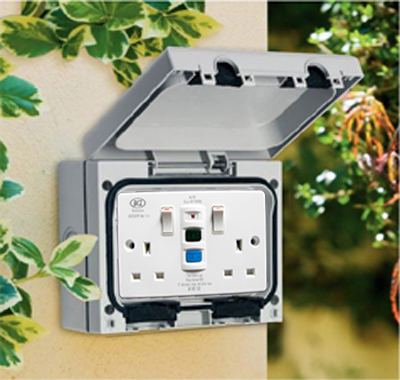

Model：BKZ0230SPW（twin RCD plastic socket, switched）

=LATCHING. PASSIVE TYPE, NO NEED TO RESET AFTER POWER OFF AND POWER ON BACK=

Specification

Rated Voltage：240VAC

Rated Current：13A max

Frequency：50Hz

Tripping current：10mA & 30mA

Tripping speed：40mS max

Voltage Surge: 4K (100KHz Ring Wave)

Endurance: 3000 Cycles min

Hit-Pot: 2000V min

Approval: CE BS7288;BS1363

Cable capacity:3X2.5 m㎡

IP Rating:IP4X

Dimension:146*86mm

Application：Equipment, Household appliances, etc.
