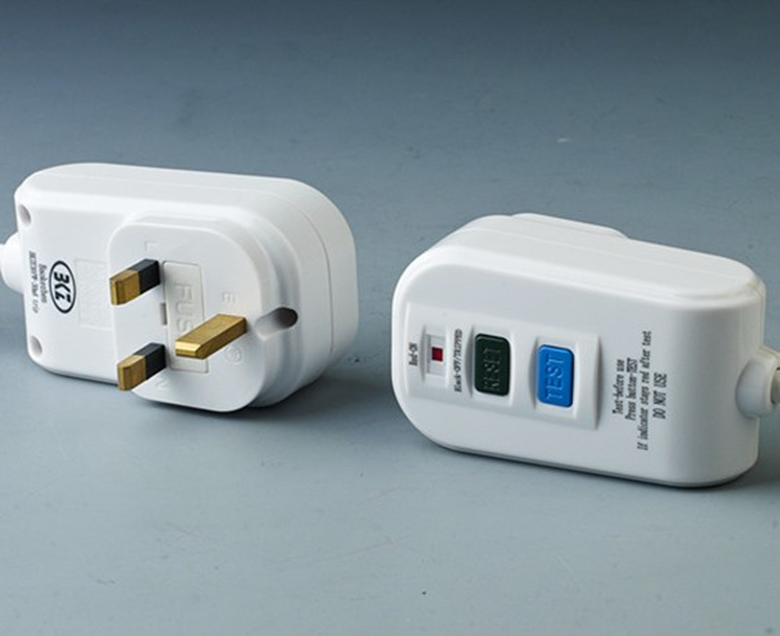

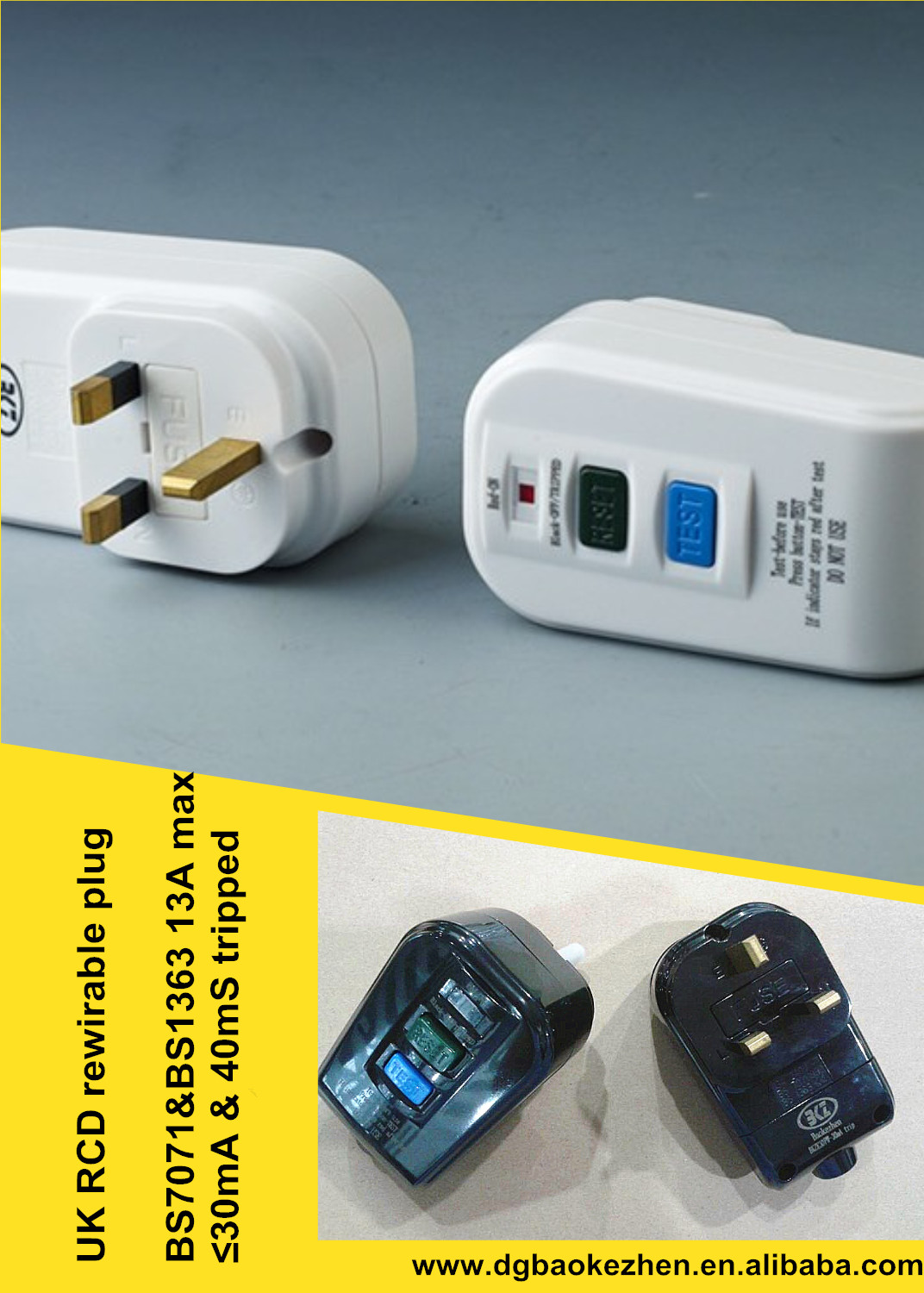

Model：BKZE30PW（RCD re-wirable plug, BS Standard）

ELCB-Earth leakage circuit breaker

=LATCHING. PASSIVE TYPE, NO NEED TO RESET AFTER POWER OFF AND POWER ON BACK=

Specification

Rated Voltage：240VAC

Rated Current：13A max

Frequency：50Hz

Tripping current30mA

Tripping speed：40mS max

Voltage Surge: 4K (100KHz Ring Wave)

Endurance: 3000 Cycles min

Hit-Pot: 2000V min

Approval: CE BS7071;BS1363

Plug type: re-wirable

Cable spec: 3CX1.25mm

Cable length: customized

Plug and cable color: customized

RCD type: latching RCD, passive RCD

Application：Equipment, Household appliances, etc.
